DoseMed |
The Dakmed

Unit Dose System

Components

Unit Dose Packaging Malaysia
For Use in Hospital Pharmacies in Malaysia

Components
  • Automatic Heat Sealer
  • Tooling Assembly Sets
  • Heavy Duty Dot Matrix Printer
  • Desktop Computer

Components:

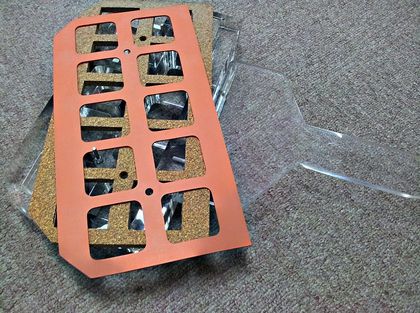

Tooling Assembly Set
  • Rubber Gasket
  • Cork Gasket
  • Tray with Handle & Compression Pin

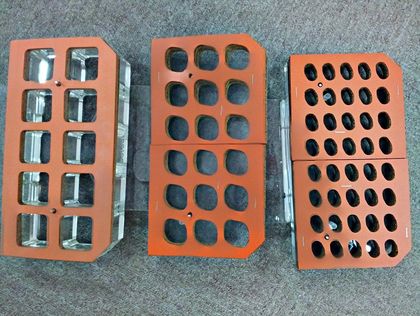

3 Types of Cavities
Left:
    • 10 Cavities - Liquid Cup (5ml, 15ml, 30ml)
    Middle:
      • 18 Cavities - Solid Dose (larger blister)
      Right:
        • 40 Cavities - Solid Dose (smaller blister)
        Components:

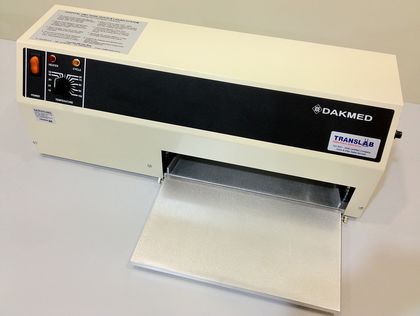

        Automatic Heat Sealer
        • High Quality Sealing - temperature, time and pressure relationships help ensure consistently high quality of sealing

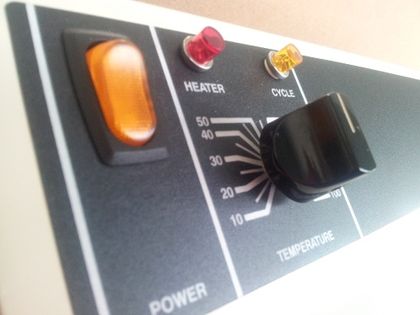

        • Cycle Indicator / Light - allows you to monitor when a cycle is in progress
        • Adjustable Thermostat - allows you to have a proper seal on various packages
        • Temp Indication / Light - helps ensure the correct heating level
        • Safe Operations - dual switch requires two hands to operate sealer
        Specifications:
        • Temperature
        • Min: 49 degrees Celsius with dial at 10
        • Max: 204 degrees Celsius with dial at 100
        • Cycle Time - 3 seconds, with dual switches for safer operations
        • Temp Controller - All solid state components, accurate to +/- 1 degree Celsius
        • Heat Platen - Solid aluminium face plate with heat core, made of Marimite (US FDA Approved)
        • Power - 220V / 50Hz
        • Dimensions (WxHxD) - 21" x 8" x 13"
        • Weight - 14.5 kg
